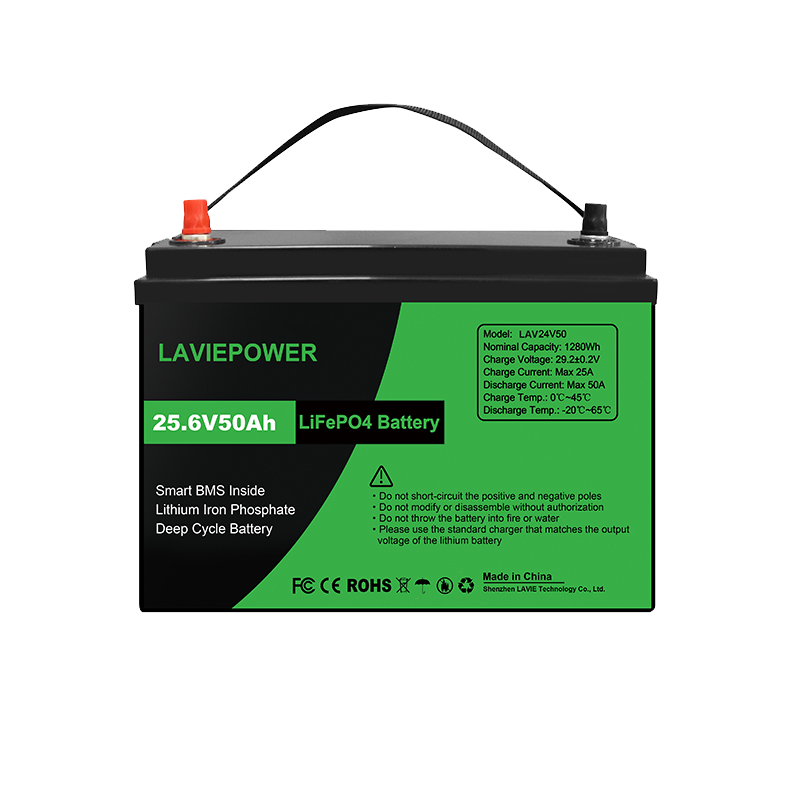

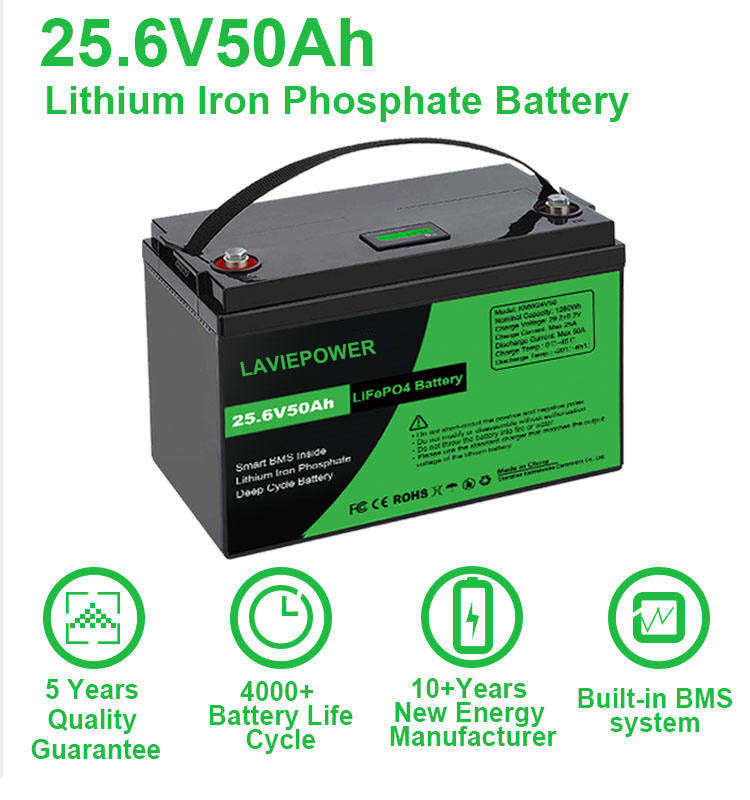

LiFePO4 24V 50Ah 100Ah Lithium Iron Phosphate Battery
LiFePO4 24V 50Ah 100Ah Lithium Iron Phosphate Battery
Regular price
$198.00 USD
Regular price
Sale price
$198.00 USD
Unit price
/
per
Couldn't load pickup availability
|
Nominal voltage
|
25.6V
|
|
Nominal capacity
|
50ah
|
|
energy storage
|
1280wh
|
|
Battery type
|
grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 8S2P
|
|
Charge Voltage
|
29.4V±0.2V
|
|
Discharge Cut-off Voltage
|
20V
|
|
Max charging current (A)
|
25A(0.5C)
|
|
BMS function
|
Overcharge, overdischarge, overcurrent, short circuit, etc.
|
|
Continuous discharge current
|
50A
|
|
Peak current
|
240A (<3s)
|
|
charging temperature
|
0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity
|
|
discharge temperature
|
-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
|
|
Storage Temperature
|
-20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity
|
|
Life cycle
|
It is 2000 times at 100% dose, 5000 times at 65% dose, and 8000 times at 40% dose.
|
|
Net weight
|
13kg
|
|
Battery display
|
Display voltage/remaining battery
|
|
Battery size
|
331*172*216mm
|
|
Case material
|
ABS IP65 (customizable)
|
|
Terminal Type
|
Anderson interface / Positive and negative screw terminals (customizable)
|
|
Warranty
|
5 years
|
Advantages of LifePO4 compared with lead-acid batteries
>Various kinds of green, non-toxic and non-polluting raw materials. >Long lifespan (2000-8500 cycles, lead-acid is ~400).
>Lightweight-save 60% weight -Charging speed increased by 6 times
>Reduce the total life cycle cost.
>No heavy metals or acids; environmentally friendly
>Maintenance-free.
>Internal BMS; higher reliability.
>No memory effect.
>Less affected by high temperature.
>Can be installed in any direction
What else can we do for you?
Our EU Warehouse in Essen Germany and Warszawa Poland, ship from warehouse directly which takes only 3-7 days.
We can customize lithium batteries with different capacities to replace SLA batteries! Welcome to customize the shell, weight,size, BMS, technology, etc.! Voltage range: 12V–24V–36V–48V–60v–72V–96V Capacity range: 60Ah-100Ah-200Ah- 300Ah-400ah....1000Ah
