grade A 3.2VLifePO4 Prismatic Lithium iron phosphate battery cell 8S2P
Charge Voltage
29.4V±0.2V
Discharge Cut-off Voltage
20V
Max charging current (A)
25A(0.5C)
BMS function
Overcharge, overdischarge, overcurrent, short circuit, etc.
Continuous discharge current
50A
Peak current
240A (<3s)
charging temperature
0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity
discharge temperature
-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
-20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity
Life cycle
It is 2000 times at 100% dose, 5000 times at 65% dose, and 8000 times at 40% dose.
Net weight
13kg
Battery display
Display voltage/remaining battery
Battery size
331*172*216mm
Case material
ABS IP65 (customizable)
Terminal Type
Anderson interface / Positive and negative screw terminals (customizable)
Warranty
5 years

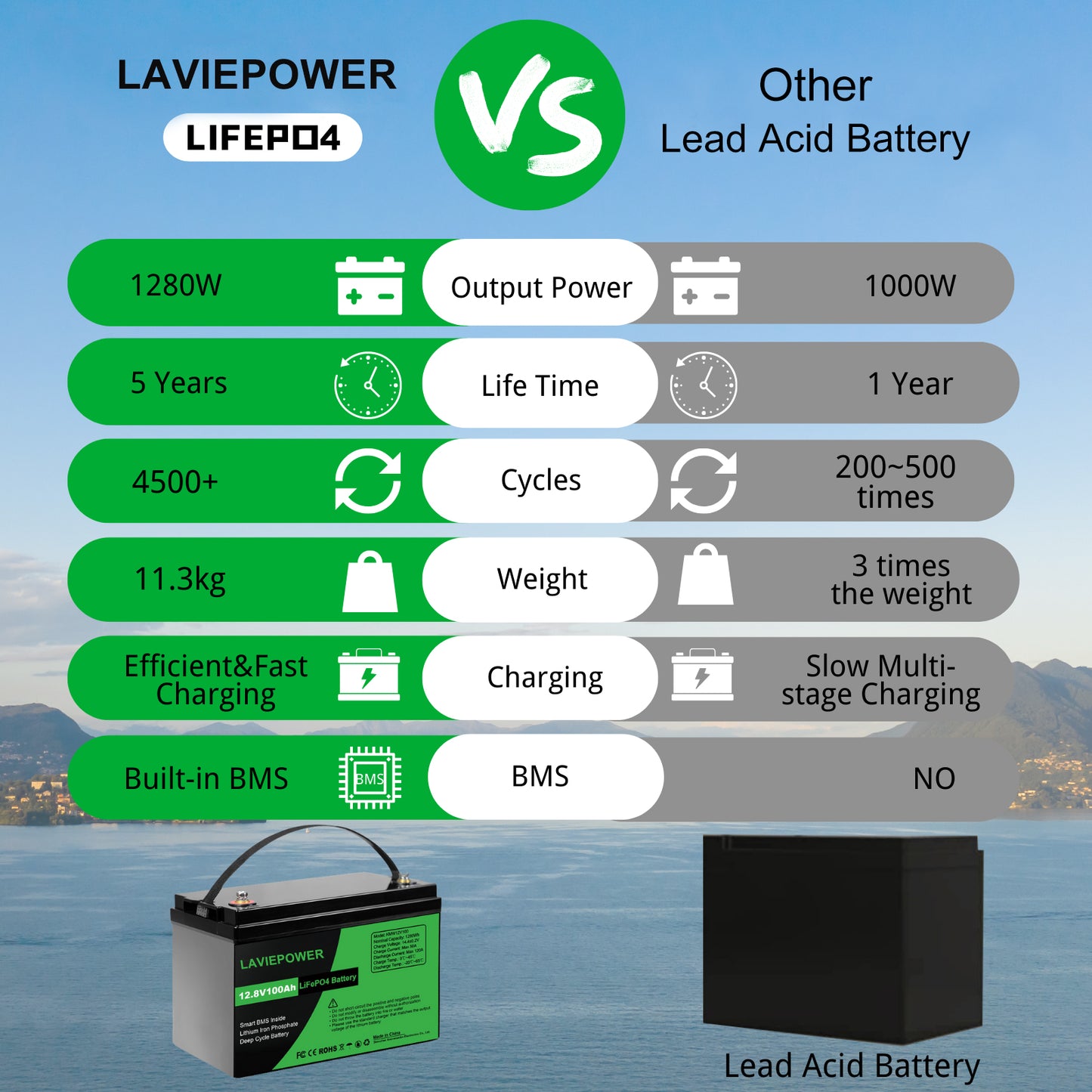

Advantages of LifePO4 compared with lead-acid batteries
>Various kinds of green, non-toxic and non-polluting raw materials. >Long lifespan (2000-8500 cycles, lead-acid is ~400). >Lightweight-save 60% weight -Charging speed increased by 6 times >Reduce the total life cycle cost. >No heavy metals or acids; environmentally friendly >Maintenance-free. >Internal BMS; higher reliability. >No memory effect. >Less affected by high temperature. >Can be installed in any direction
What else can we do for you?
We can customize lithium batteries with different capacities to replace SLA batteries! Welcome to customize the shell, weight,size, BMS, technology, etc.! Voltage range: 12V–24V–36V–48V–60v–72V–96V Capacity range: 60Ah-100Ah-200Ah- 300Ah -400ah....1000Ah
