48V Rack Mount Lithium Battery Replace Pylontech Grade A Smart BMS 100Ah 200Ah Ground Mount Lithium Battery
48V Rack Mount Lithium Battery Replace Pylontech Grade A Smart BMS 100Ah 200Ah Ground Mount Lithium Battery
Regular price
$980.00 USD
Regular price
Sale price
$980.00 USD
Unit price
per
Couldn't load pickup availability
Features of the LAV-G48100
The LAV-G48100 is designed to be the highest quality, safest and most maintainable lithium iron phosphate (LiFeP04) battery pack available.
- High performance True A+ cells*16 Internally serviceable and replaceable.
- Cells rated at 80% capacity after 4000 cycles, 100% DOD @1C Rate 80% DOD .5C Rate typical capacity over 7000 cycles. - 48 Volt (51.2V nominal) 100Ah, 5.12 kWh >20 year typical life and 10 year warranty >Built in intelligent Battery. Management System (BMS) to provide automated and maintenance-free battery operation.
- 5 temperature sensors for protection from low and high temperatures.
- Pre-charge circuitry to prevent BMS damage.
- Removable cover, user serviceable and replaceable BMS and other components.

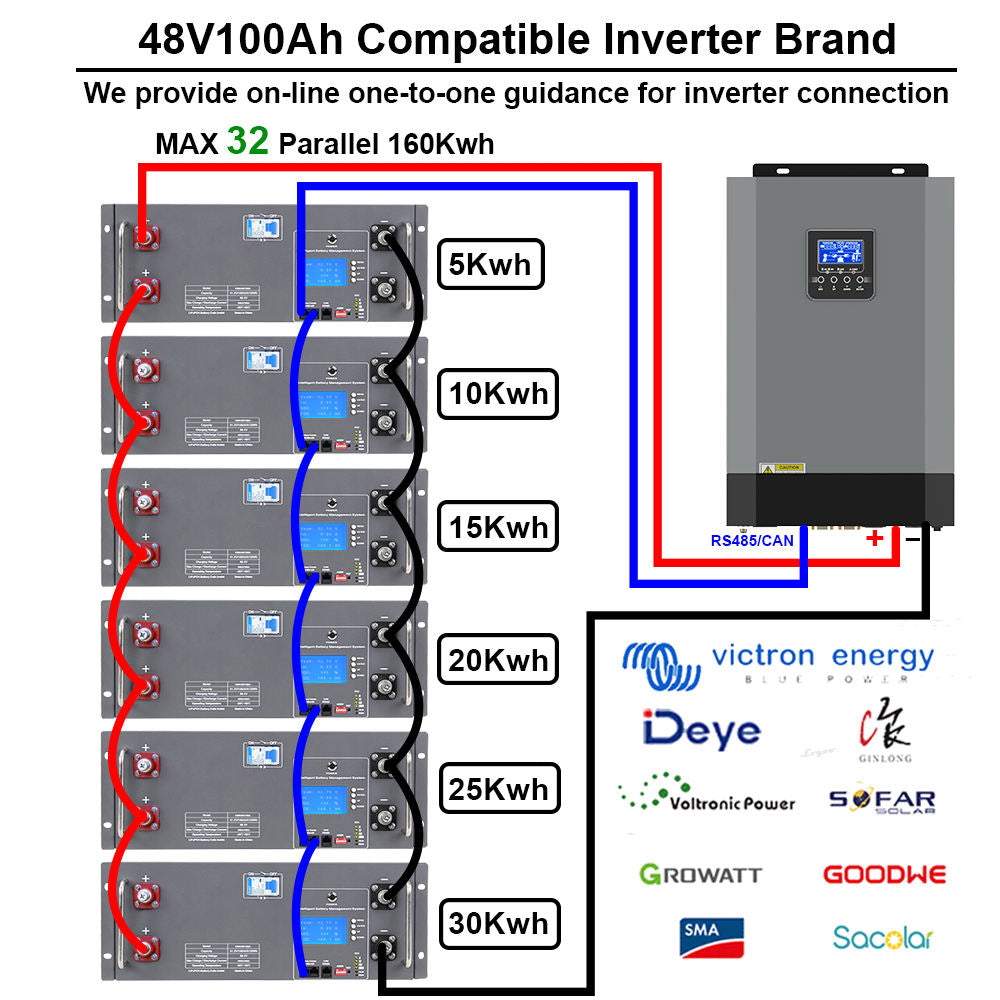

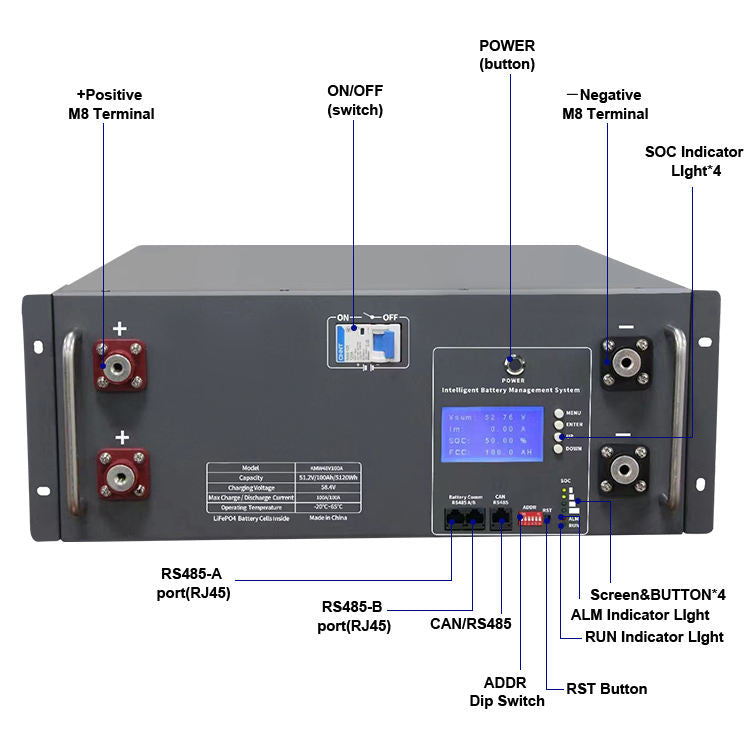

- RS485 & CAN Bus communication, compatible with multiple inverters via display and keypad (be sure to choose the right communication cable).

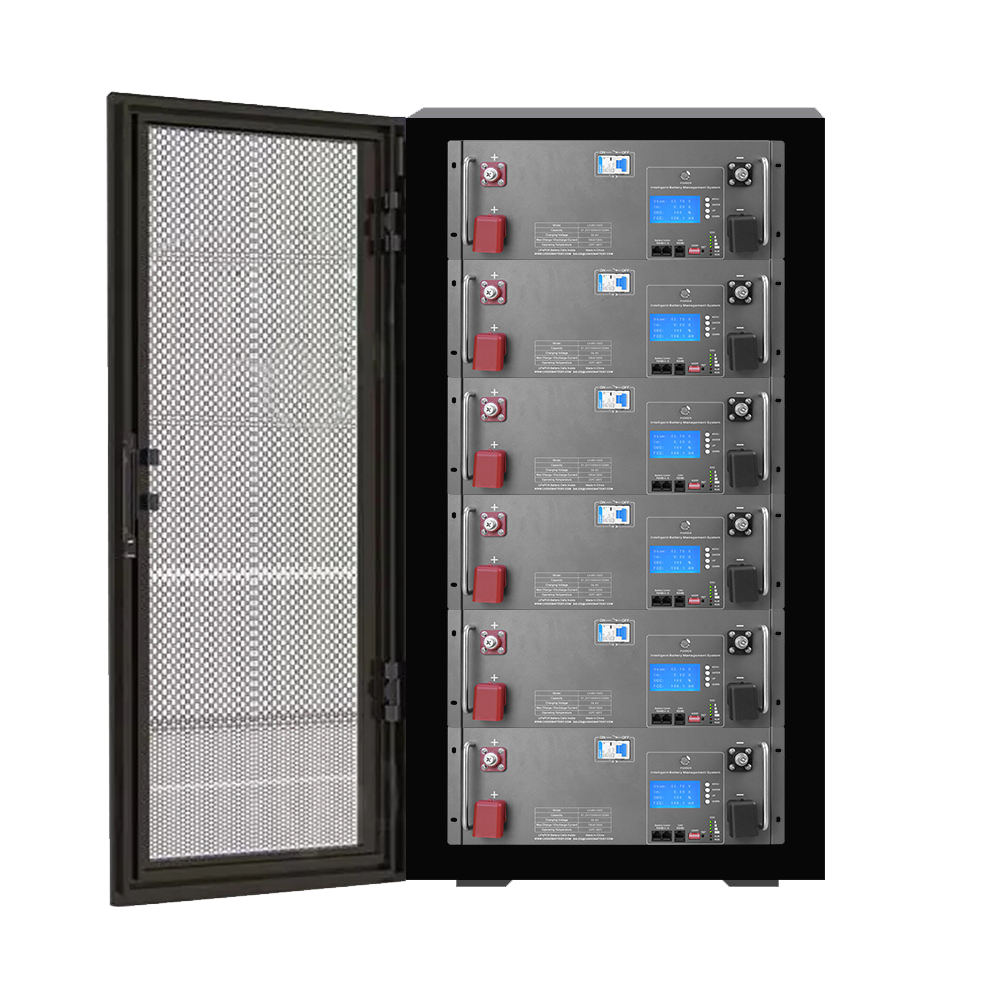

- Rack mountable design for quick and easy installation into standard 19" EIA server racks and custom server racks.
|
Model Number
|
LAV-G48100
|
|
Battery Type
|
LiFePO4
|
|
Type
|
Rackmount Lithium Battery
|
|
Battery type
|
Lithium Iron Phosphate Battery
|
|

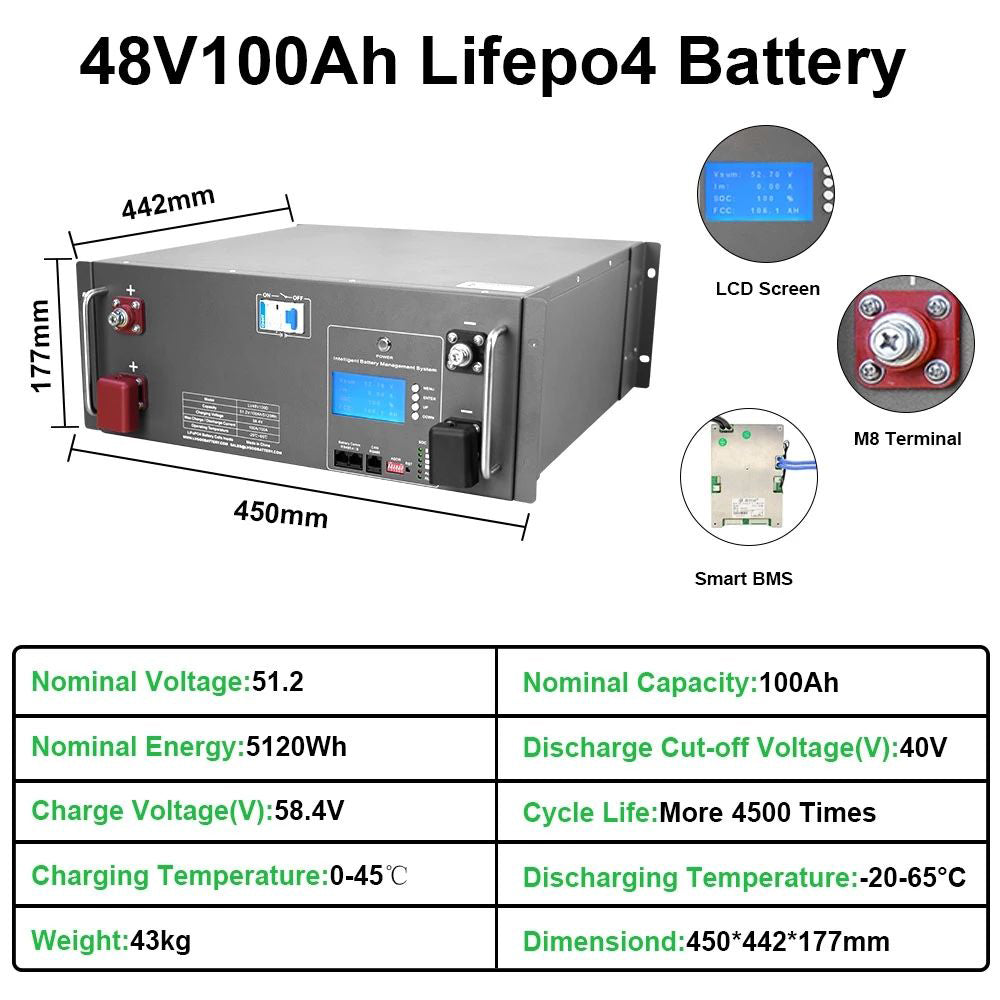

battery size
|
450*442*177mm
|
|
Overcharge cut-off voltage
|
58.4V
|
|
Over discharge voltage
|
40V
|
|
BMS
|
48V 16S 100A BMS
|
|
Communication Interface
|
CAN,RS485
|
|
Max.Charge
|
50A
|
|
Discharge Current(A)
|
100A
|
