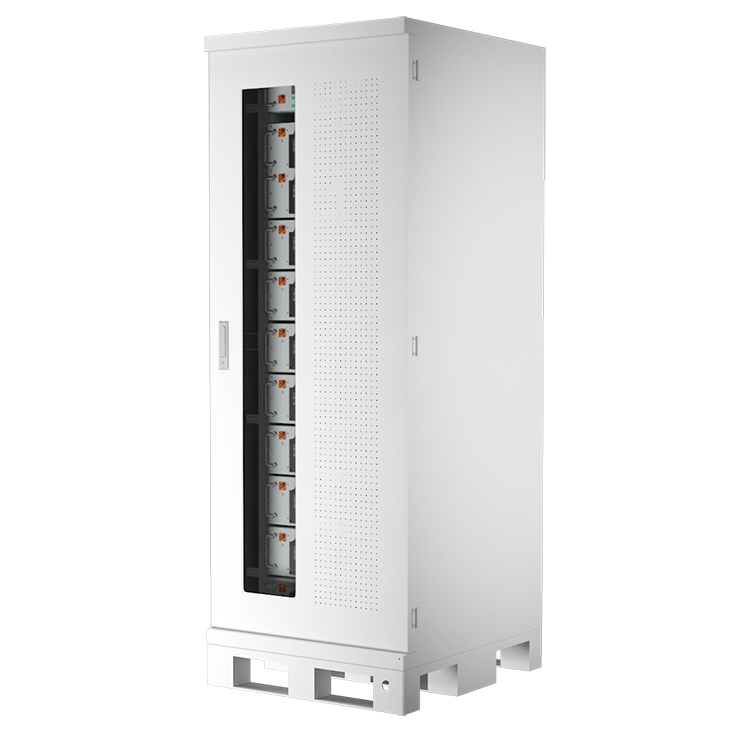

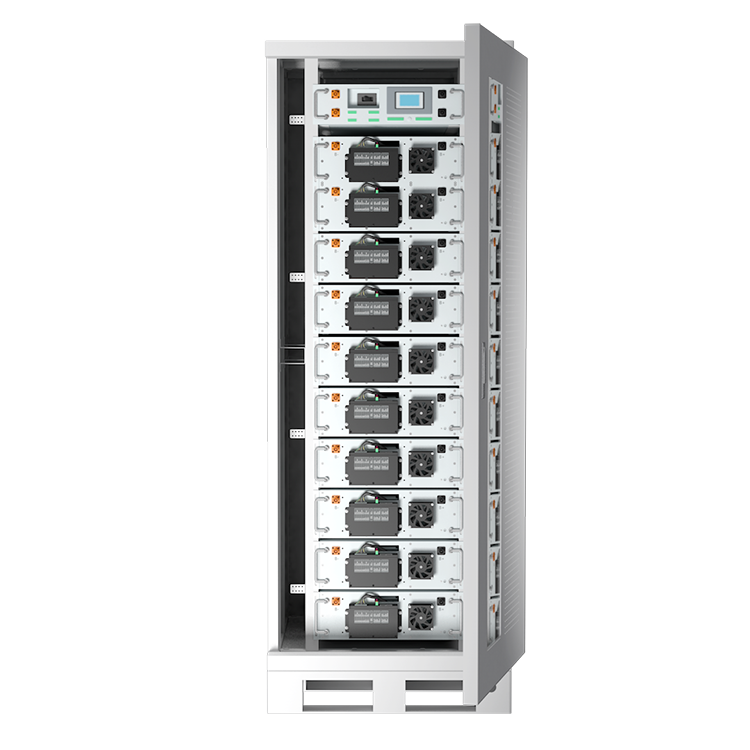

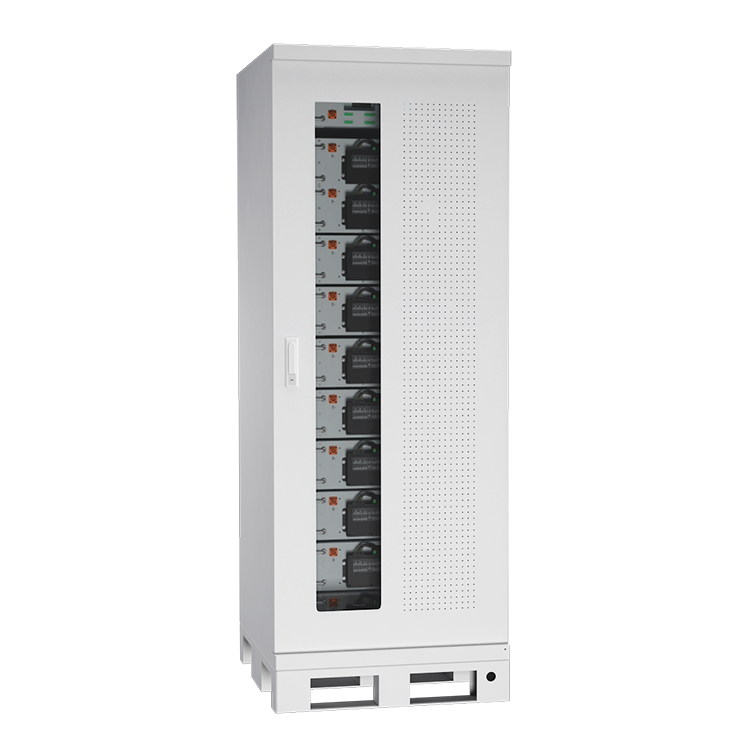

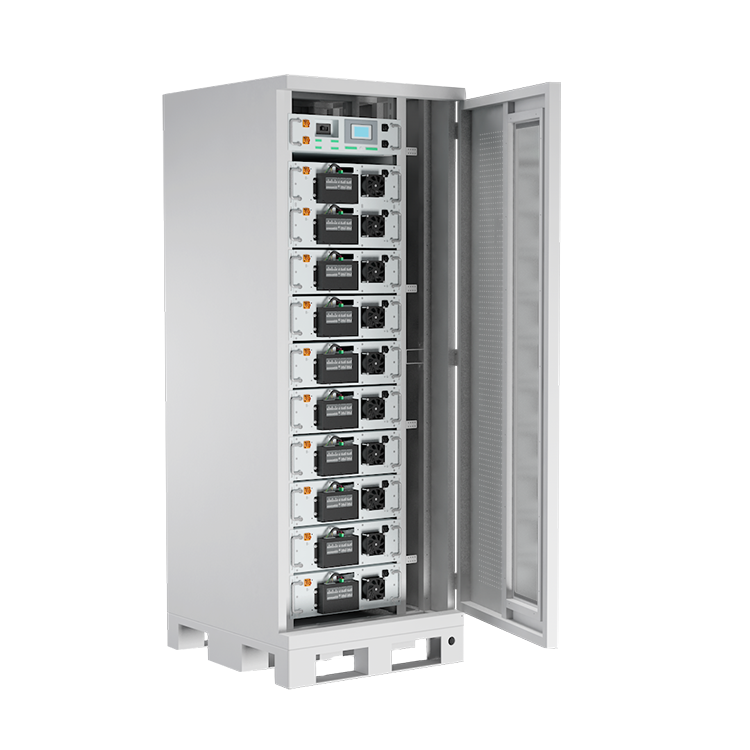

358.4V 104Ah 30KWh 37.38 KWh High Voltage Commercial Energy Storage System

358.4V 104Ah 30KWh 37.38 KWh High Voltage Commercial Energy Storage System

$8,800.00 USD
$8,800.00 USD
Sale Sold out
Item
HV-AC-S7
HV-AC-S8
HV-AC-S9
HV-AC-S10
HV-AC-S11
Rated capacity(kWh)
37.38 KWh
42.59KWh
47.88 KWh
53.2KWh
58.5KWh
Battery type
LFP
Configuration
7*16S1P
8*16S1P
9*16S1P
10*16S1P
11*16S1P
Rated voltage(V)
358.4V
409.6V
460.8V
512V
563.2V
Rated capacity(Ah)
104Ah
Working voltage range(V)
280V-408.8V
320-459.9V
360-526.6V
432-584V
440-642.4V
Rated charge and
discharge current(A)
100A
Rated charge and
discharge power(kW)
35 KW
40KW
46 KW
51 KW
56 KW
Communication
CAN/RS485
Cycle（time）
6000
Working temperature
range(℃)
-15-45
Humidity(%)
5%-65%
Altitude(m)
Use beyond derating
2000m
